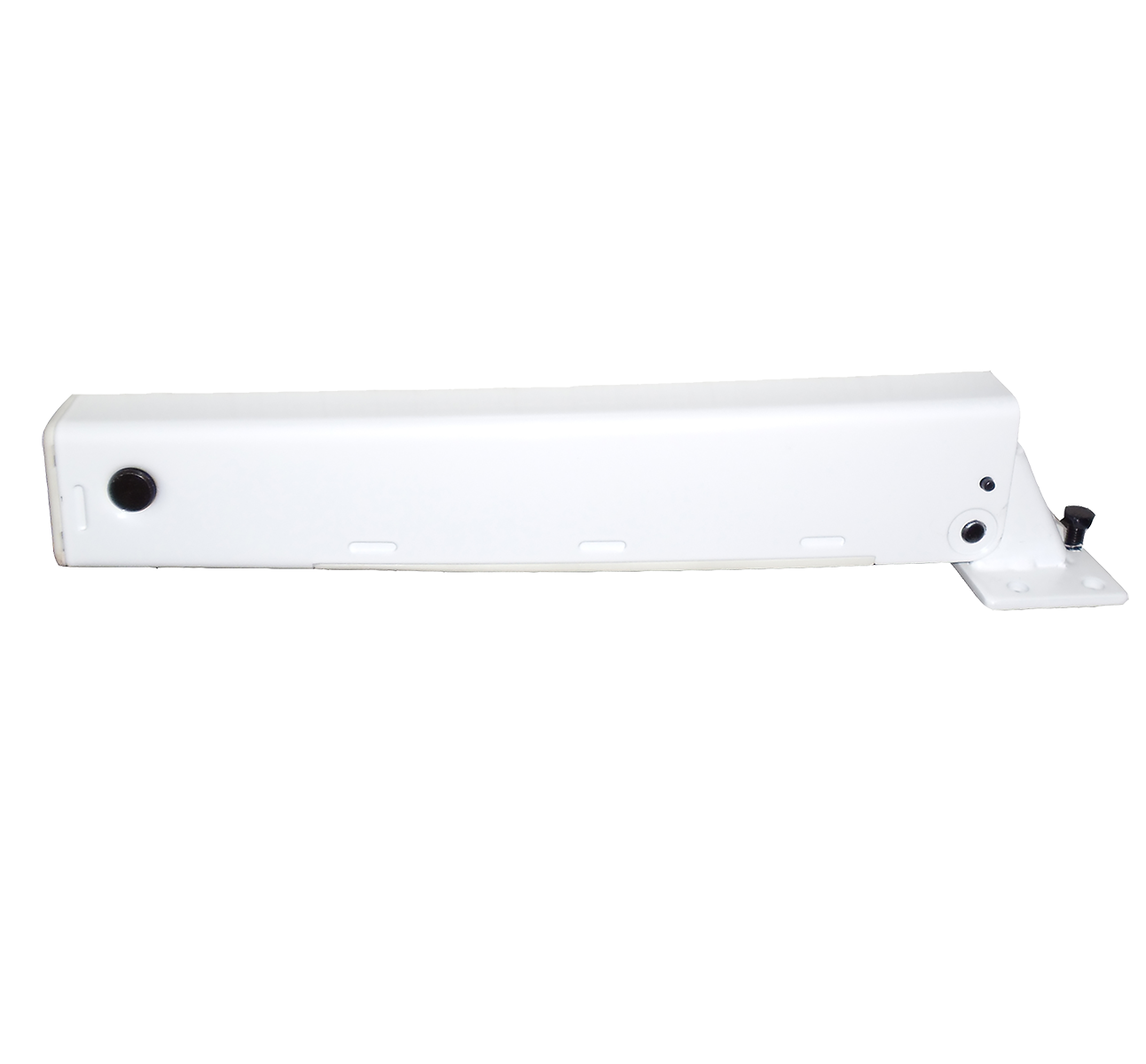

Lockey TB200 Hydraulic Gate Closer

Lockey TB200 Hydraulic Gate Closer

Features

• Closes large and small gates up to 125 lbs. easily and gently
• Hydraulic/Nitrogen Gas controlled closing speed
• Installs on side, top, middle or bottom of right or left hand gates
• Mounts on opening side of gate, pushing the gate closed
• Maximum opening angle of 100 degrees (LockeyUSA recommends use of a mechanical stop to restrict opening angle)
• Mounting brackets and fitting bar included
• The TB200/TB200SS is not compatible with gates less than 30 inches wide
• Black powder coated steel or stainless steel finish

Technical Overview

• Gate Weight: 50-125 lbs.
• Gate Width: 36-52 in.
• Max. Opening Angle: 100 degrees
• Min. Operating Temperature: 15 degrees Fahrenheit
• Max. Operating Temperature: 122 degrees Fahrenheit
• Type of Gate Material: Vinyl, Steel, Wood
• Closing/Latch Method: Hydraulic/Nitrogen Gas
• Material: Steel or Stainless Steel
• Finish: Powder coated
• Hinge Arrangements: In-line or Offset
• Opening Pressure: Approx. 3-7 lbs.
